EPS Controls
Condenser Fan Motor & Assembly - Aftermarket Replacement Addison Part No. 0515P-0784 -710mm/230V -460V
Condenser Fan Motor & Assembly - Aftermarket Replacement Addison Part No. 0515P-0784 -710mm/230V -460V
Regular price
$1,890.00 USD
Regular price
Sale price
$1,890.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

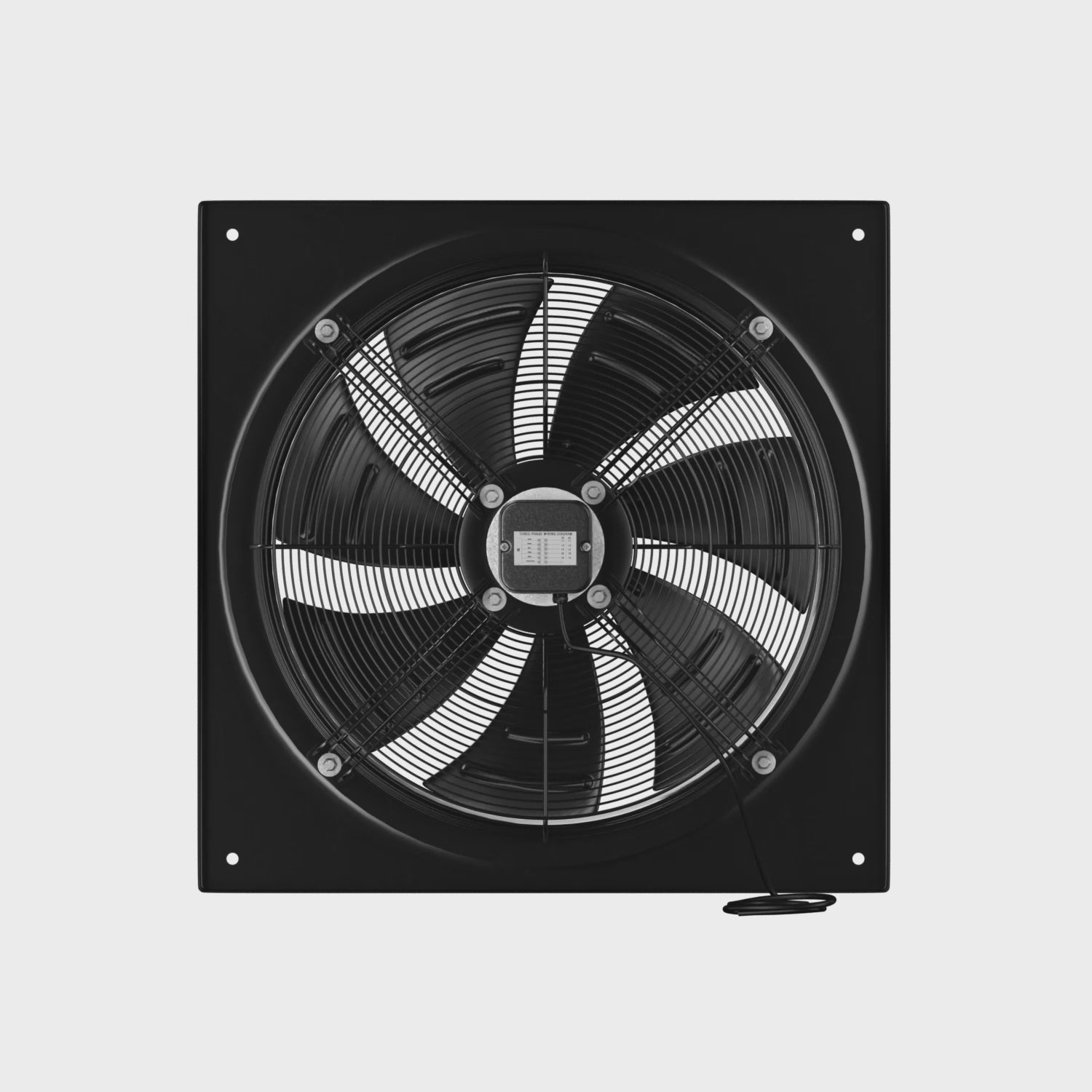

Condenser Fan Motor with Fan Assembly
Replacement part for ADDISON # 0515P-0784
Unit |
Axial fan motor with fan assembly |
Brand | Dunli |
Motor | Three-Phase motor |
Model | YWF.A6T-710S-7FIIIV04 |
Voltage | 230 V / 460 V. Double voltage |
Frequency | 60 Hz |
Input power | 1250 W |
Current | 3.4 A |
Speed | 1050 r/min |
Air flow | 14700 m³/h |
Noise | 75 dBA |
Rotation | CCW |
Insulation class | F |
Motor Protection | Overheated protection function, cut off temperature 150 - 160 °C |
Protection Class | IP54 |
Ambient temperature | -30°C + 60°C |
Bearings | Ball bearings |
Mounting type | Horizontal or Vertical |
Net weight/ Gross weight | 82 / 90 lbs |
Package size | 34 x 34 x 12 in |
- Each Condenser Fan Motor undergoes a rigorous quality control process, including thorough inspections for any mechanical or structural defects, before being shipped to ensure optimal performance and customer satisfaction.
- This Condenser Fan Motor is designed specifically for Addison HVAC units. However, it may also be compatible with Daikin, AAON, Carrier and Modine units, subject to your evaluation and discretion.
Share

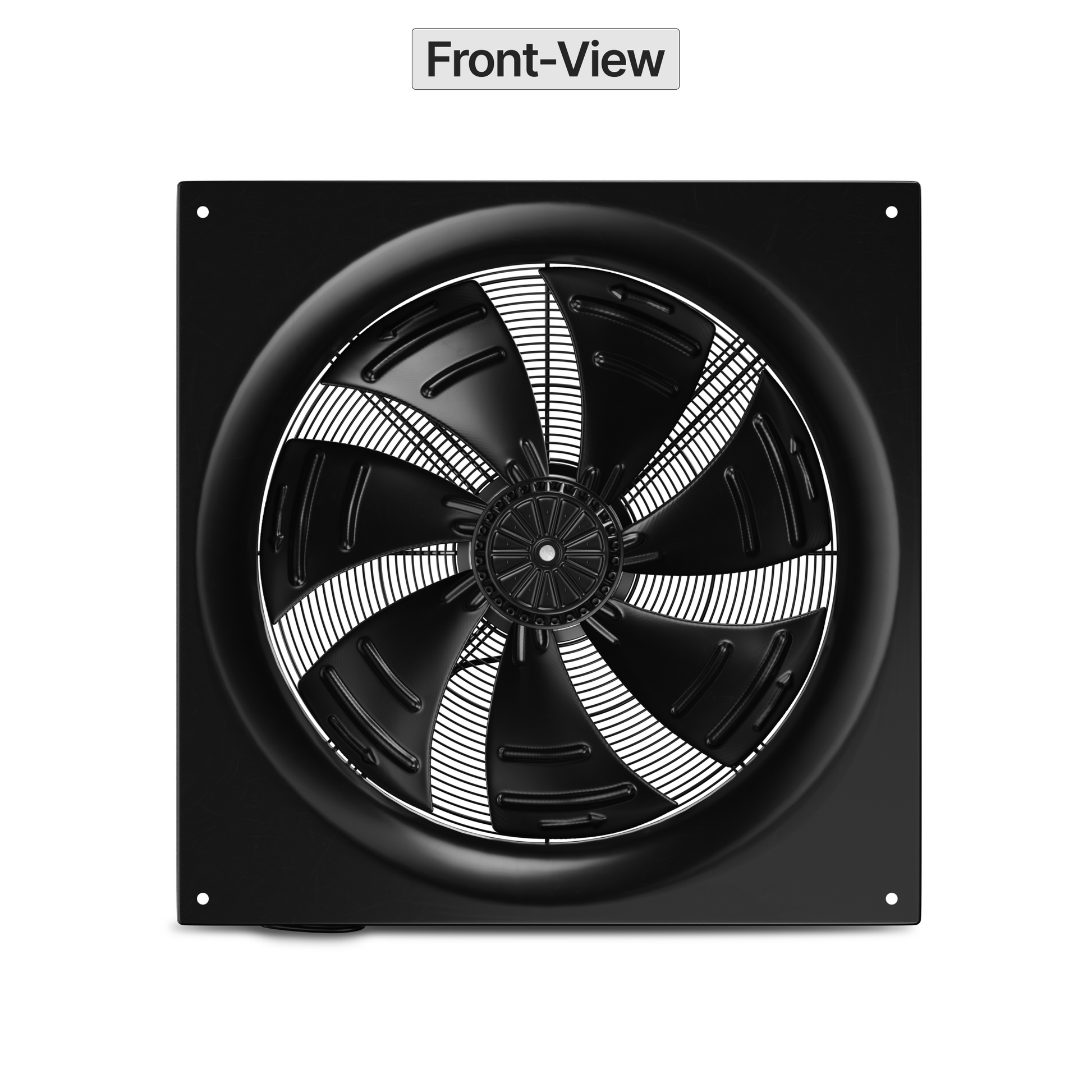

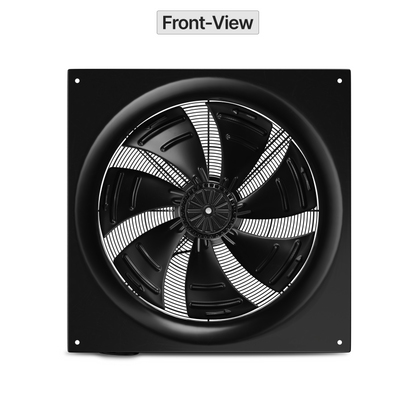

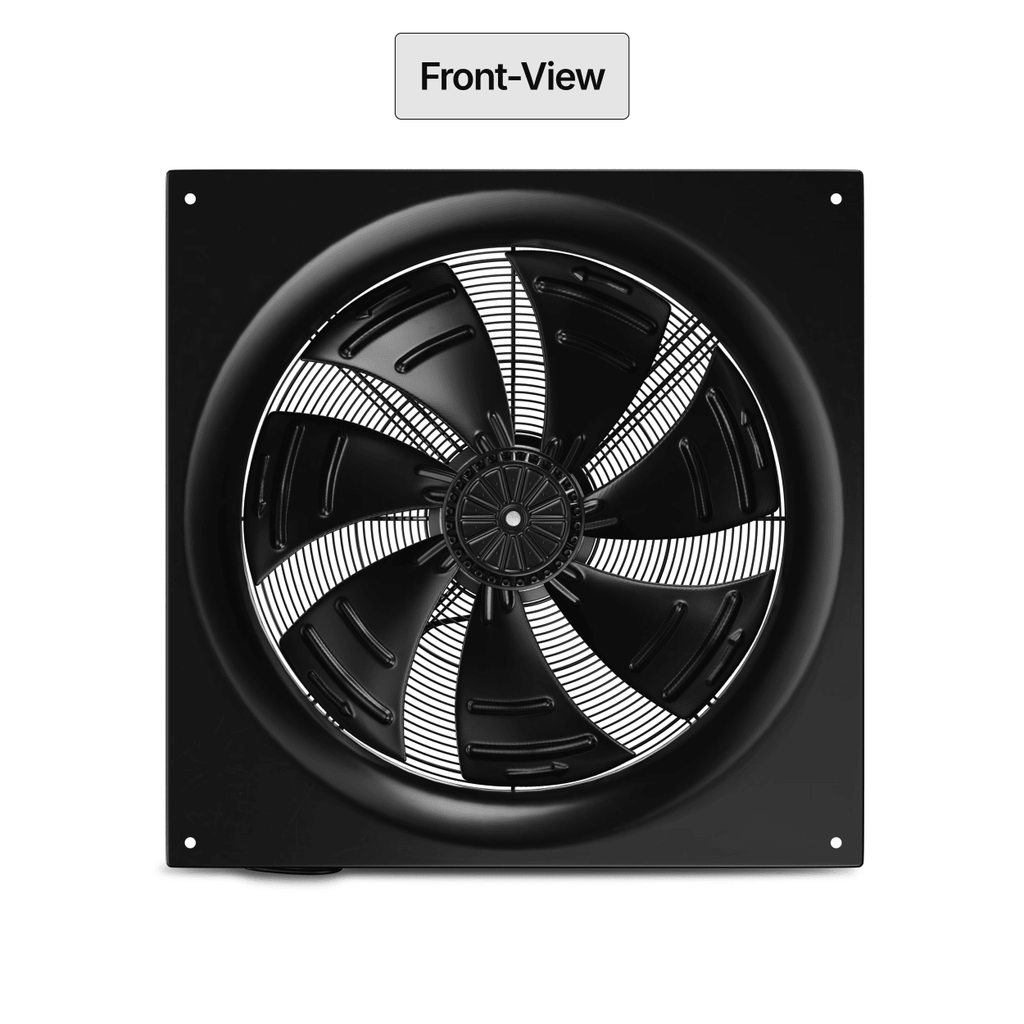

![Condenser Fan Motor & Assembly - Aftermarket Replacement Addison Part No. 0515P-0784 -710mm/230V -460V](http://www.epscontrols.com/cdn/shop/files/710mm-UpdatedFrontviewImage.png?v=1713637454&width=1445)

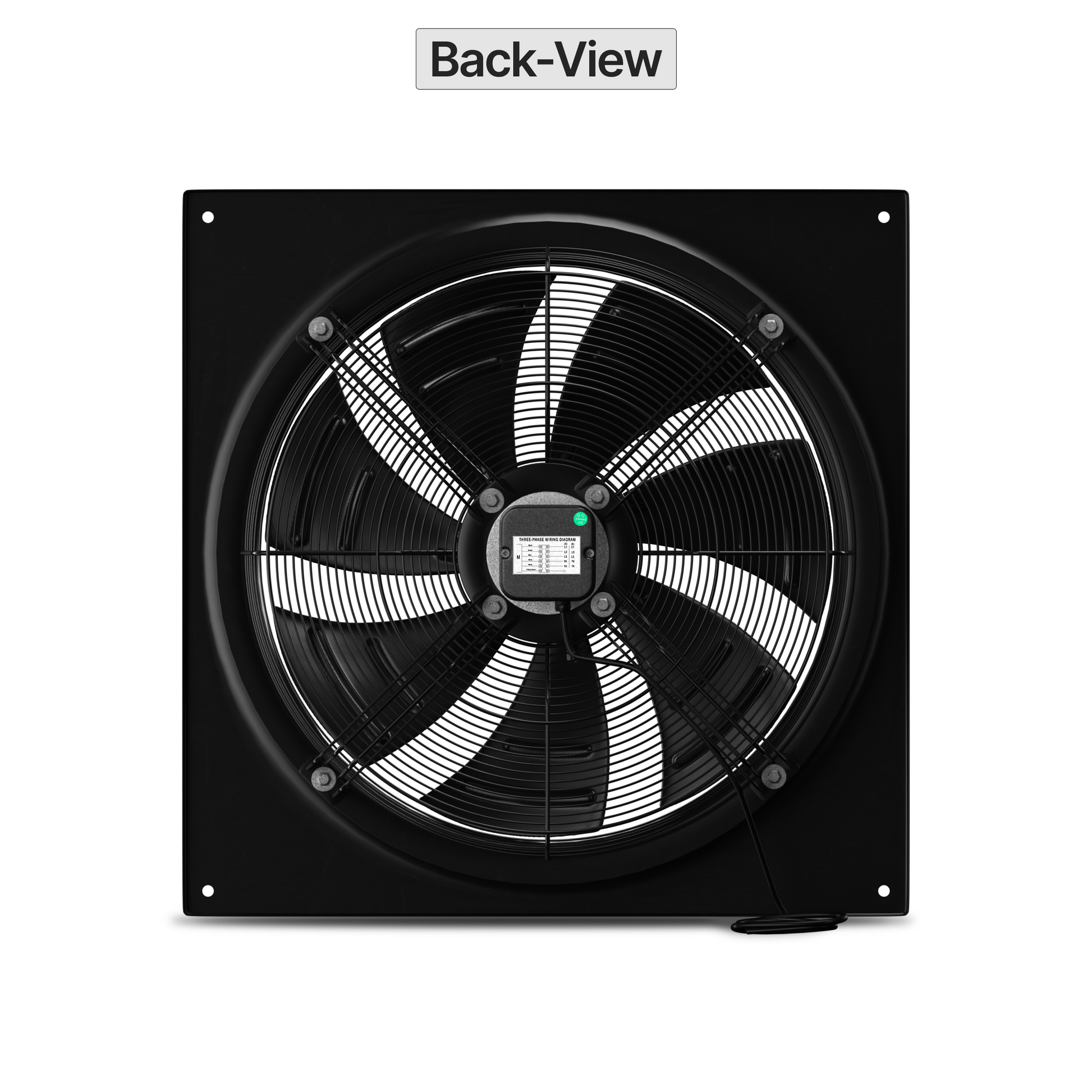

![Condenser Fan Motor & Assembly - Aftermarket Replacement Addison Part No. 0515P-0784 -710mm/230V -460V](http://www.epscontrols.com/cdn/shop/files/710mm-UpdatedBackviewImage.png?v=1713637454&width=1445)

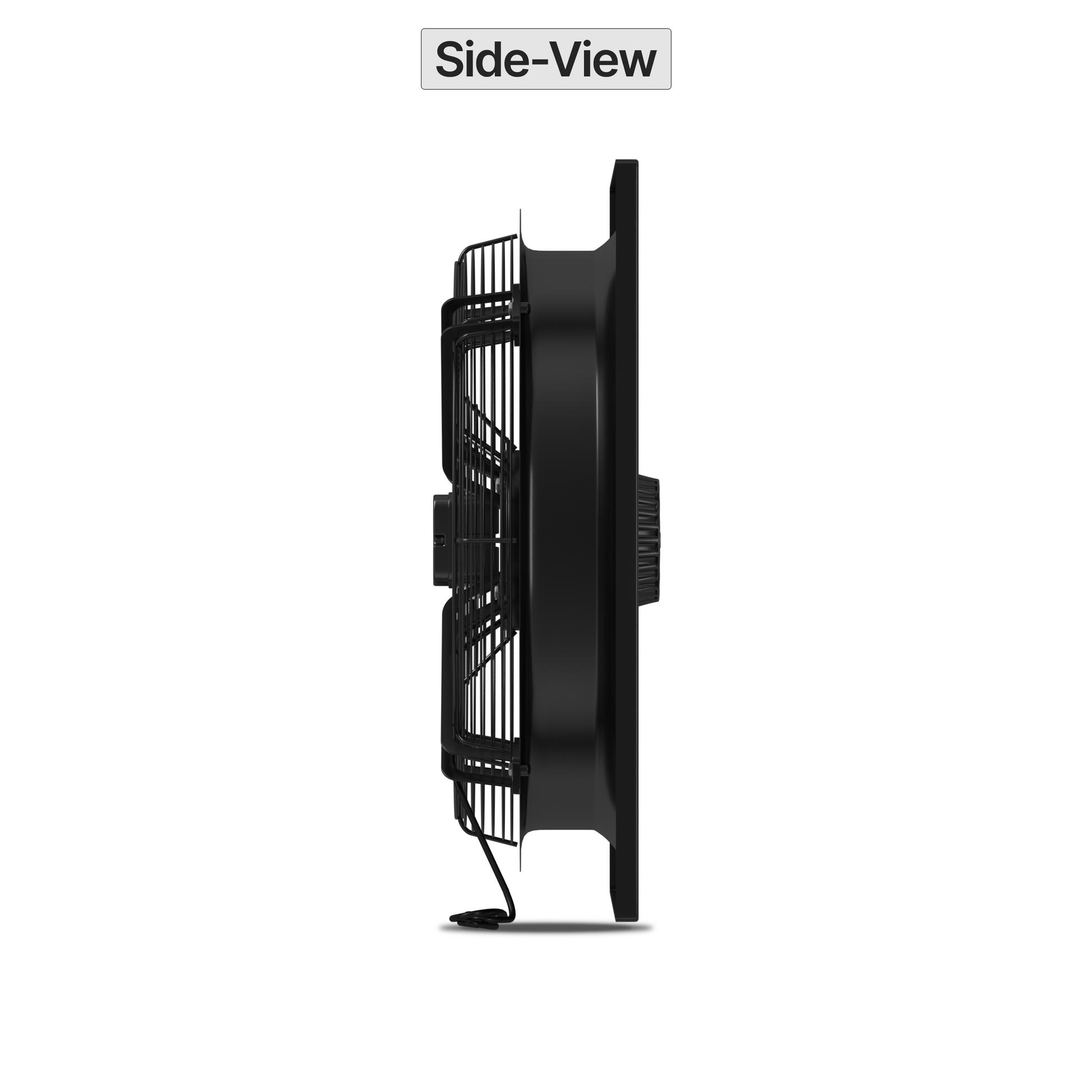

![Condenser Fan Motor & Assembly - Aftermarket Replacement Addison Part No. 0515P-0784 -710mm/230V -460V](http://www.epscontrols.com/cdn/shop/files/710mm-UpdatedSideviewImage.png?v=1713637454&width=1445)

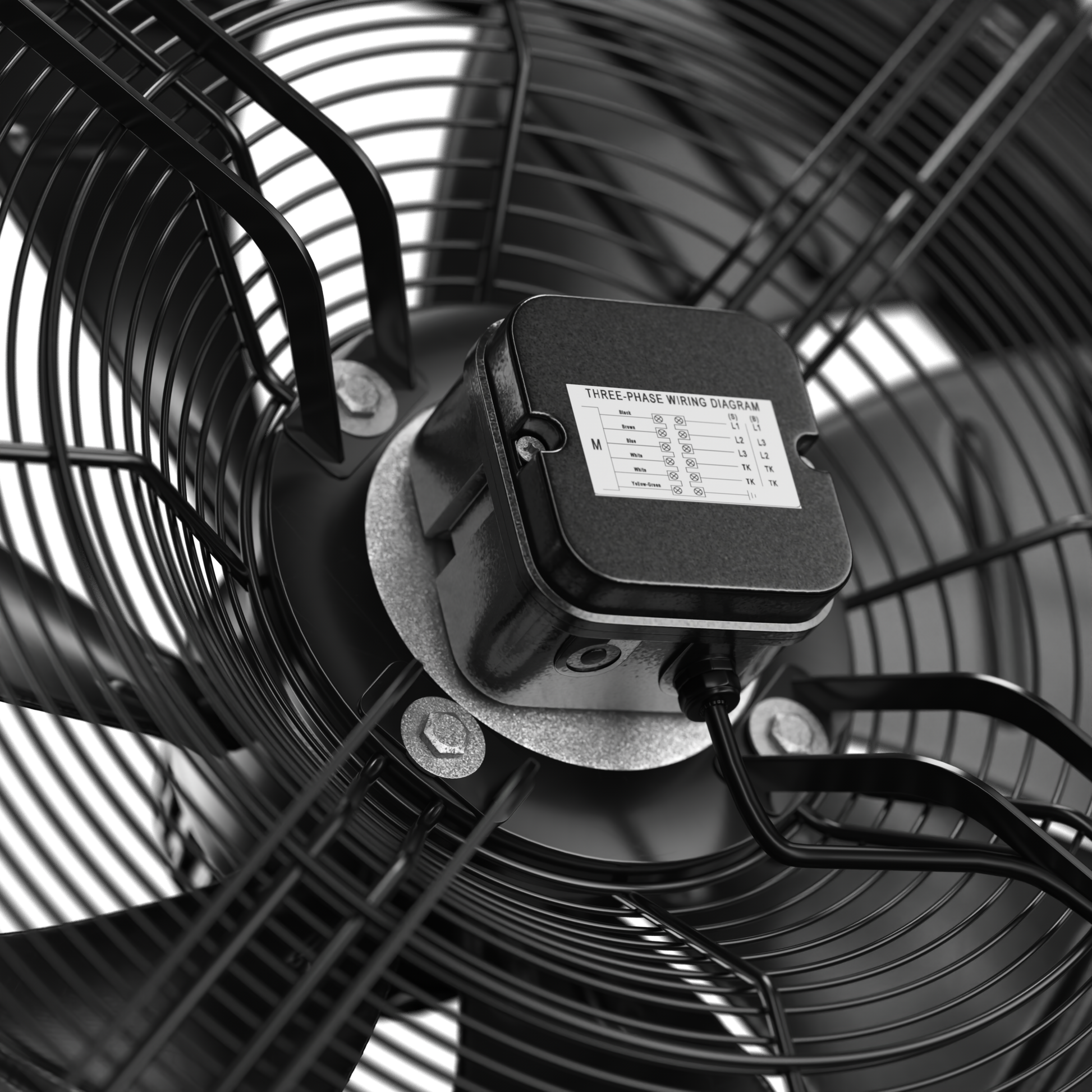

![Condenser Fan Motor & Assembly - Aftermarket Replacement Addison Part No. 0515P-0784 -710mm/230V -460V](http://www.epscontrols.com/cdn/shop/files/710mm-UpdatedCloseUp3DRender.png?v=1713637454&width=1445)

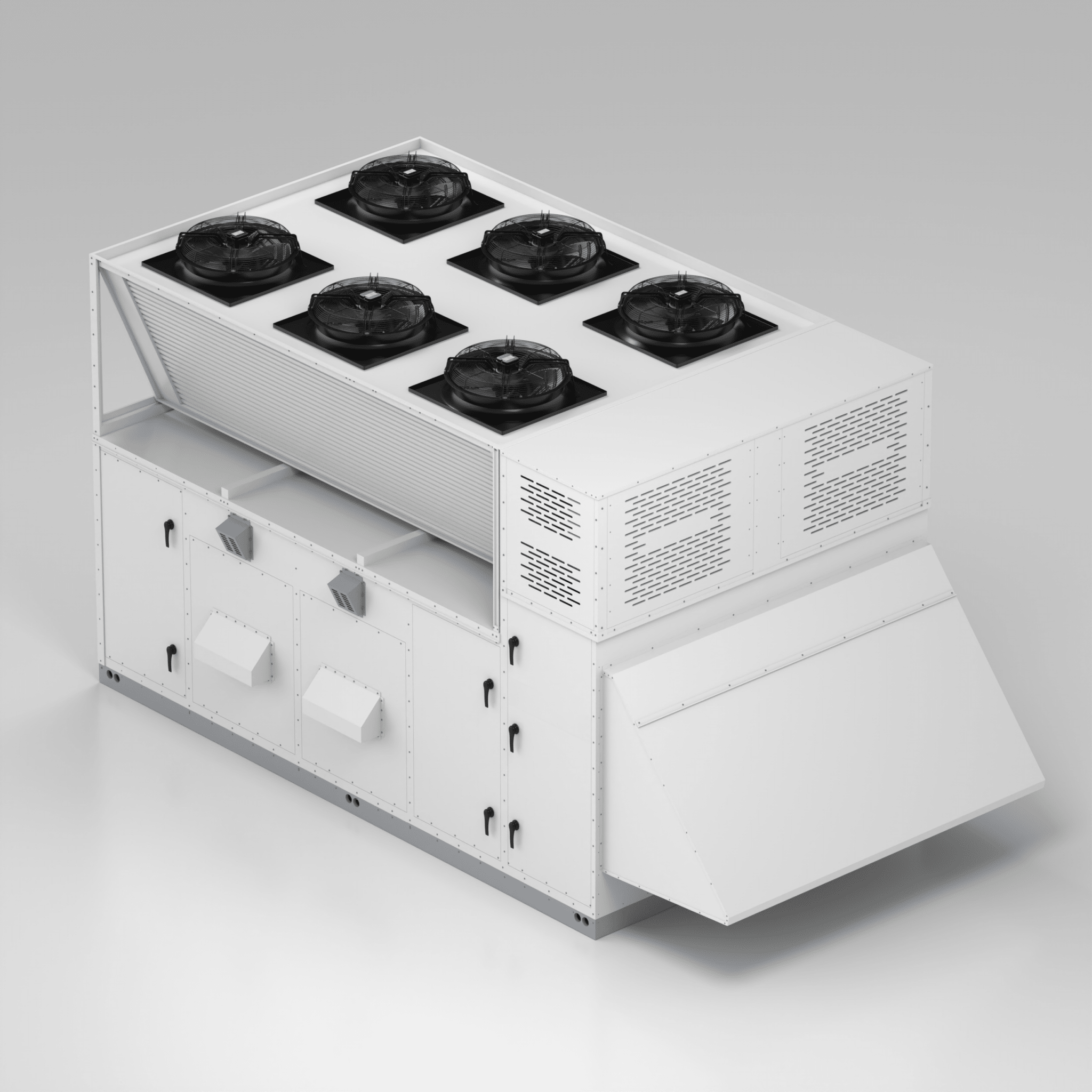

![Condenser Fan Motor & Assembly - Aftermarket Replacement Addison Part No. 0515P-0784 -710mm/230V -460V](http://www.epscontrols.com/cdn/shop/files/710mm-UpdatedModelUnit3DRender.png?v=1713637454&width=1445)

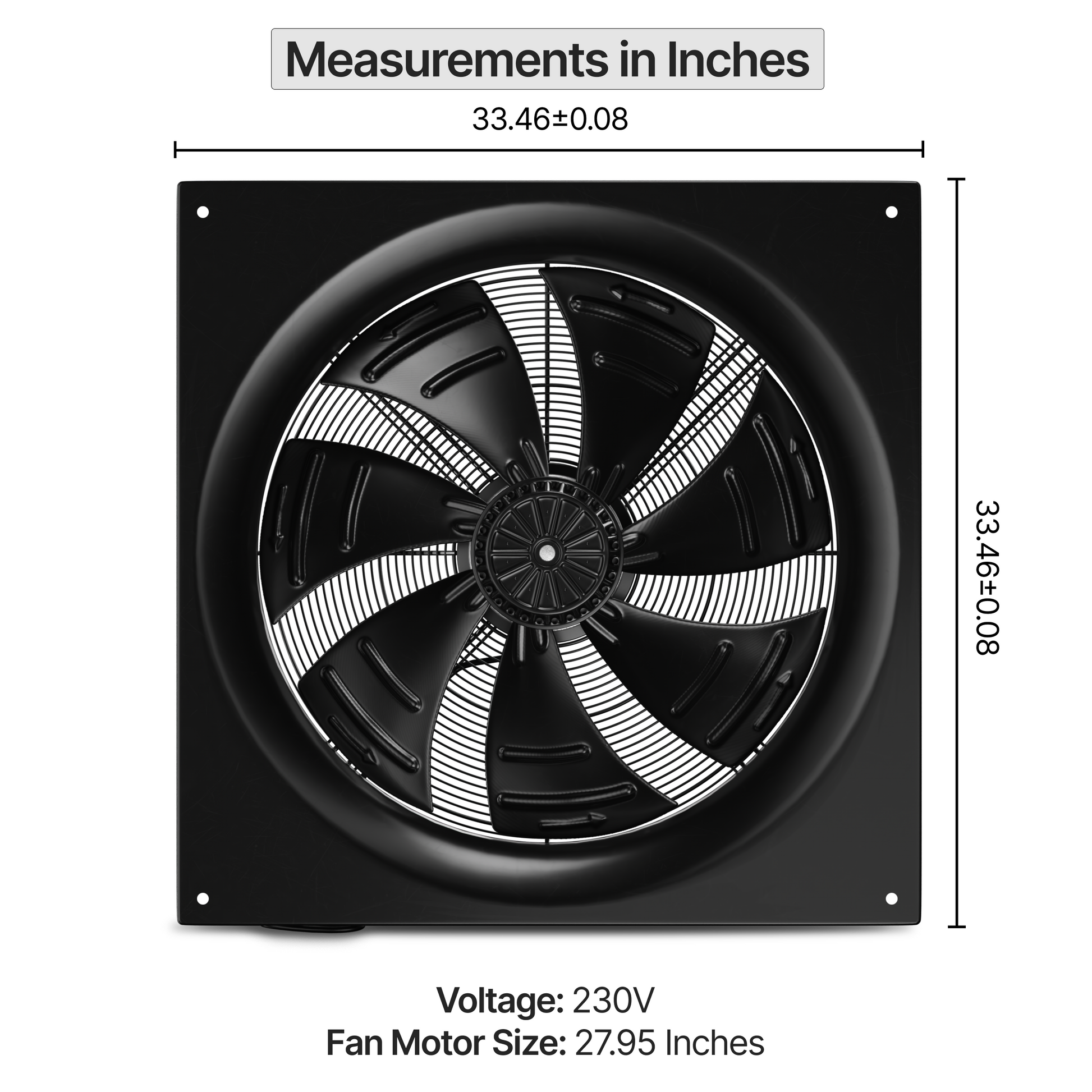

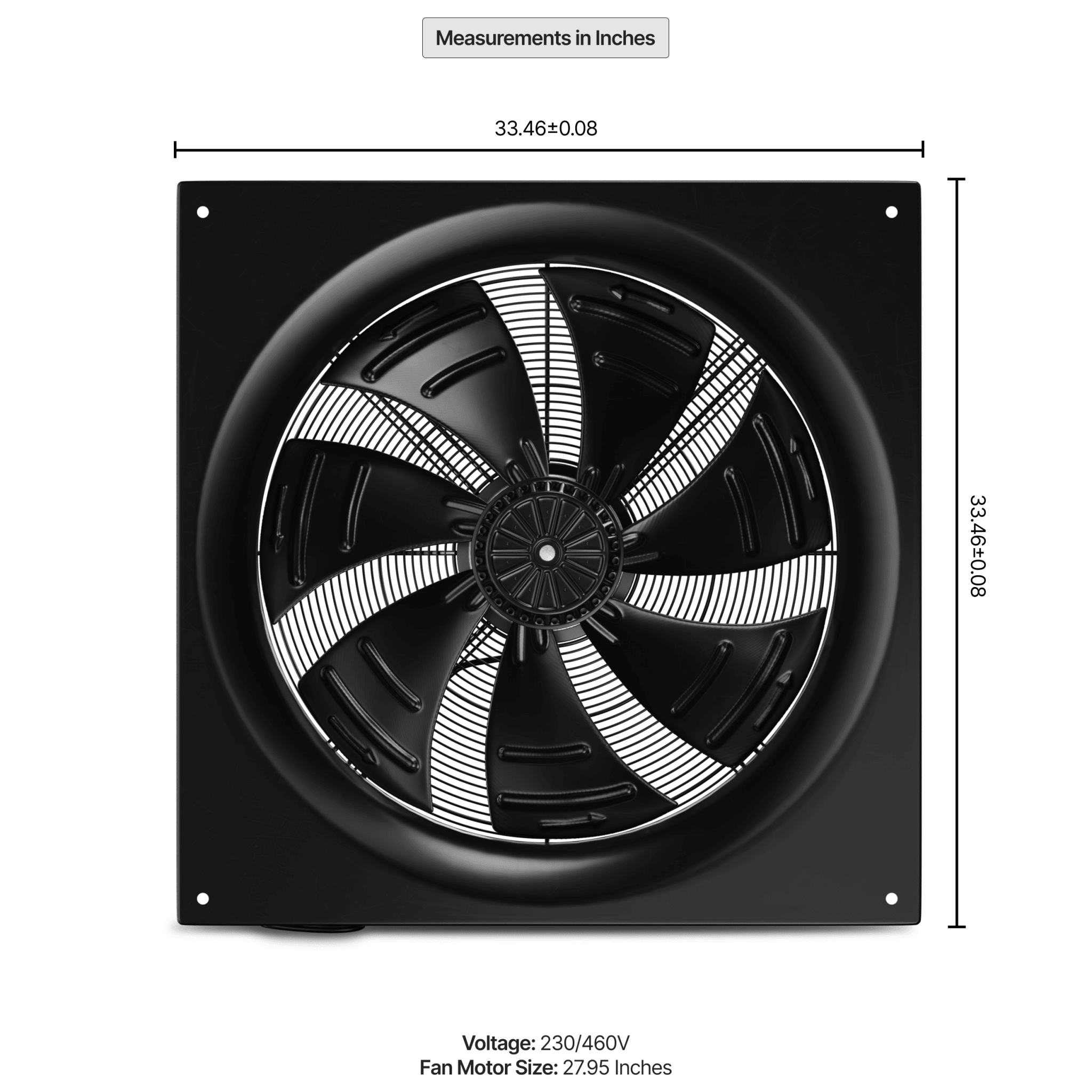

![Condenser Fan Motor & Assembly - Aftermarket Replacement Addison Part No. 0515P-0784 -710mm/230V -460V](http://www.epscontrols.com/cdn/shop/files/230V-UpdatedMeasurementsinInches.png?v=1713638041&width=1445)

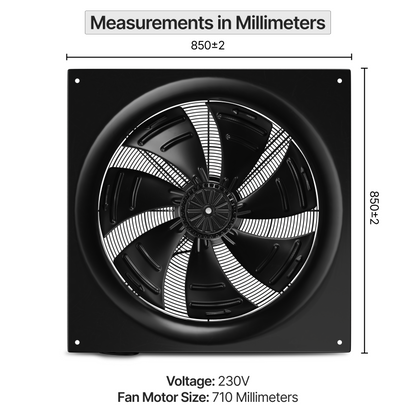

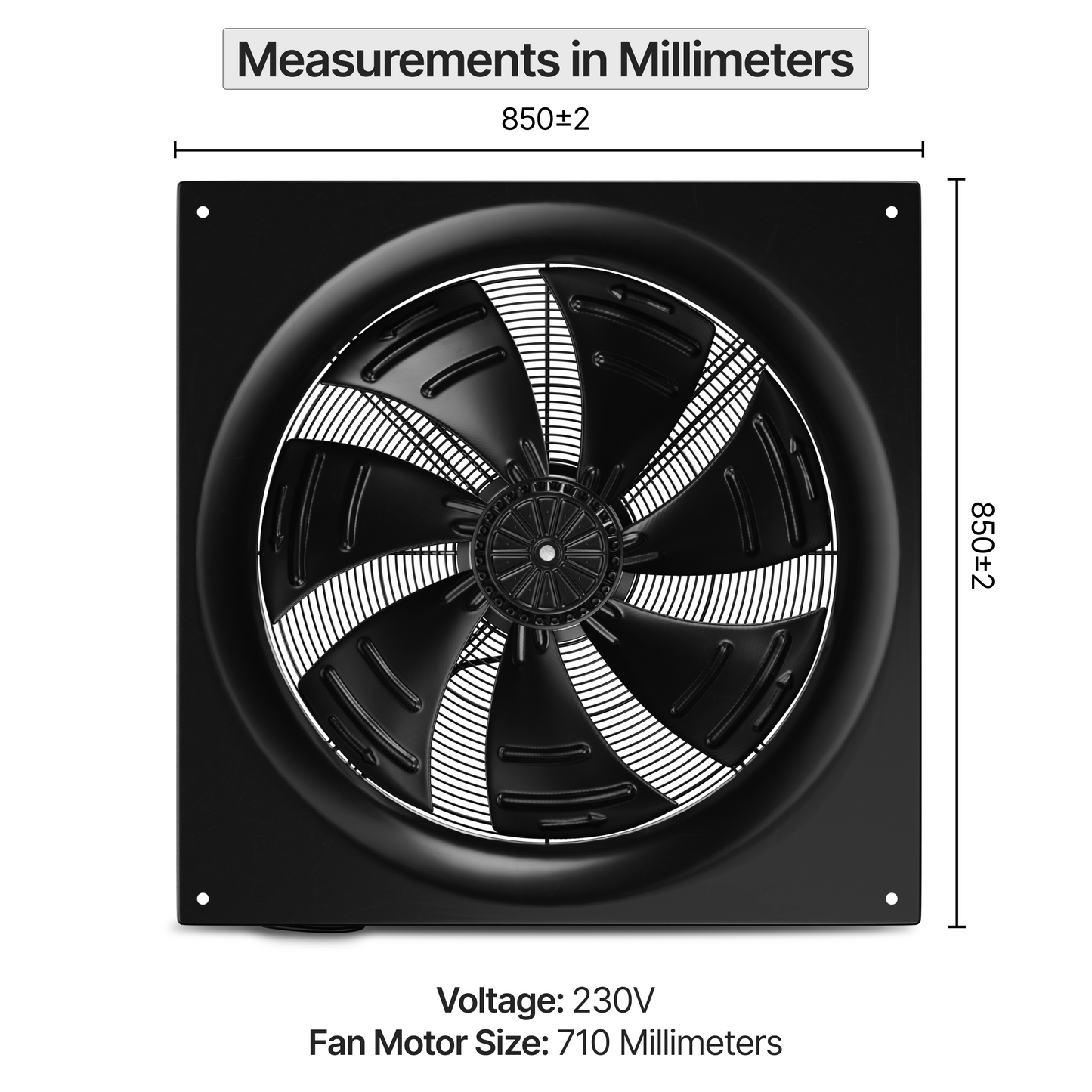

![Condenser Fan Motor & Assembly - Aftermarket Replacement Addison Part No. 0515P-0784 -710mm/230V -460V](http://www.epscontrols.com/cdn/shop/files/230V-UpdatedMeasurementsinMillimeters.png?v=1713638042&width=1445)
