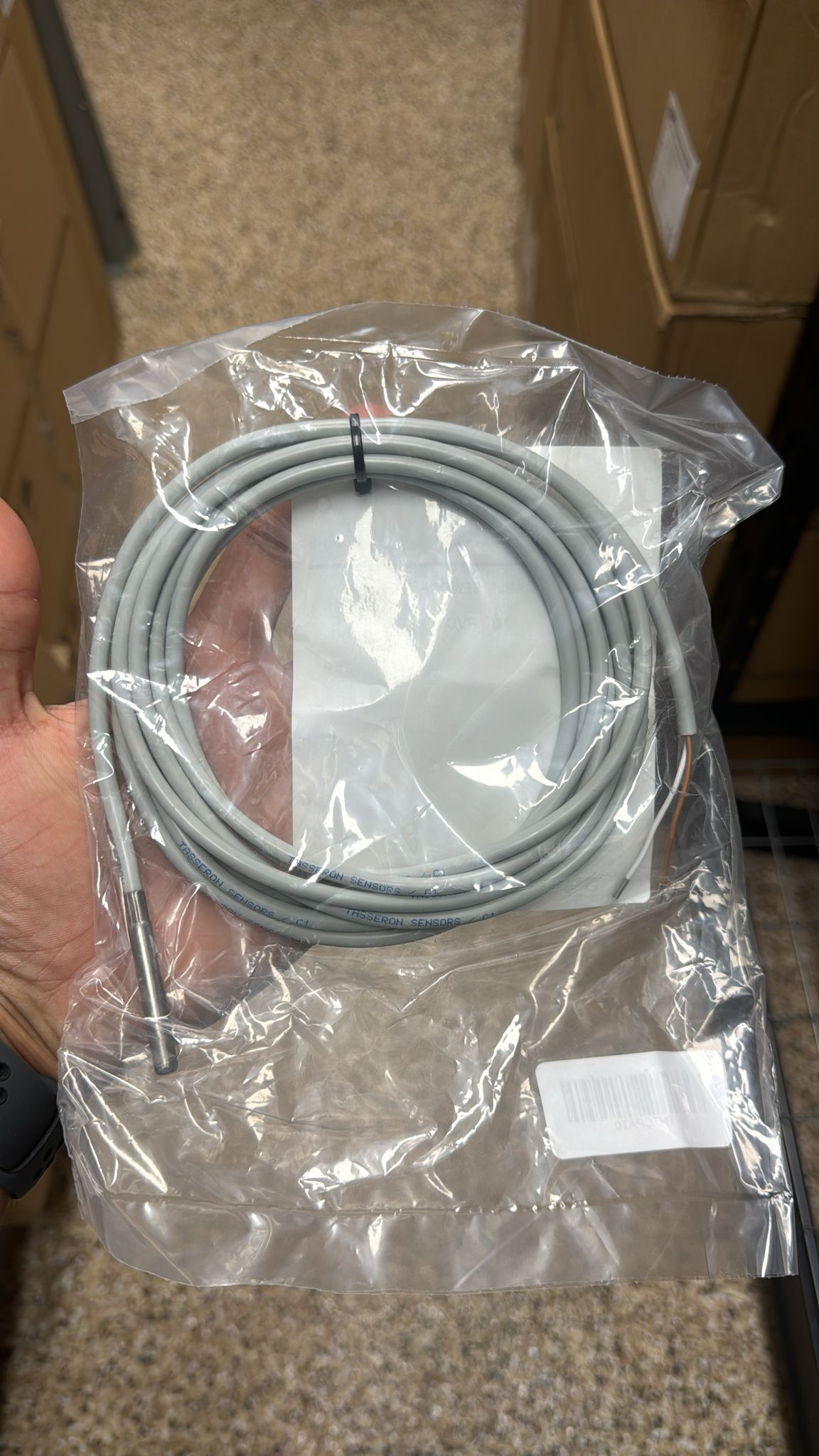

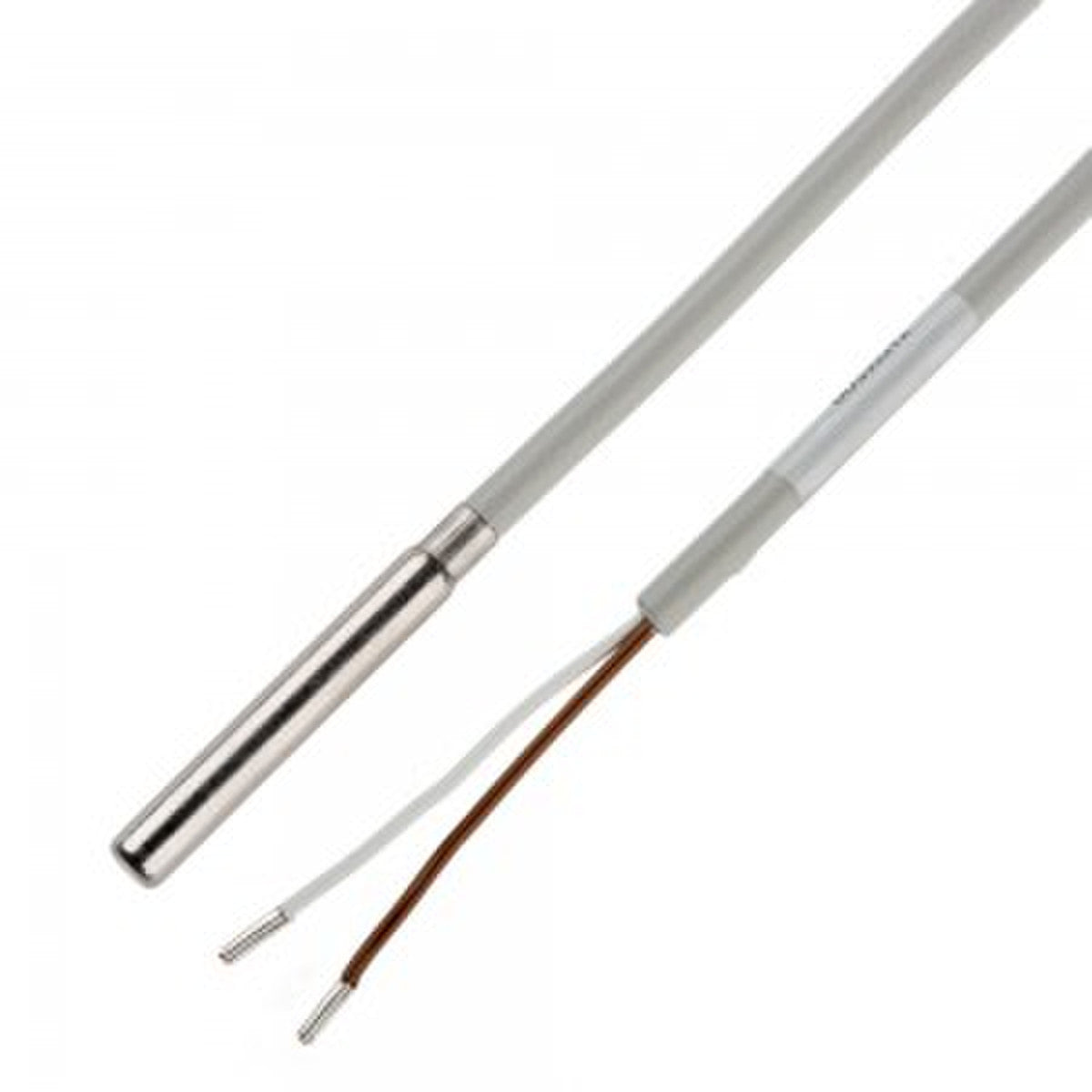

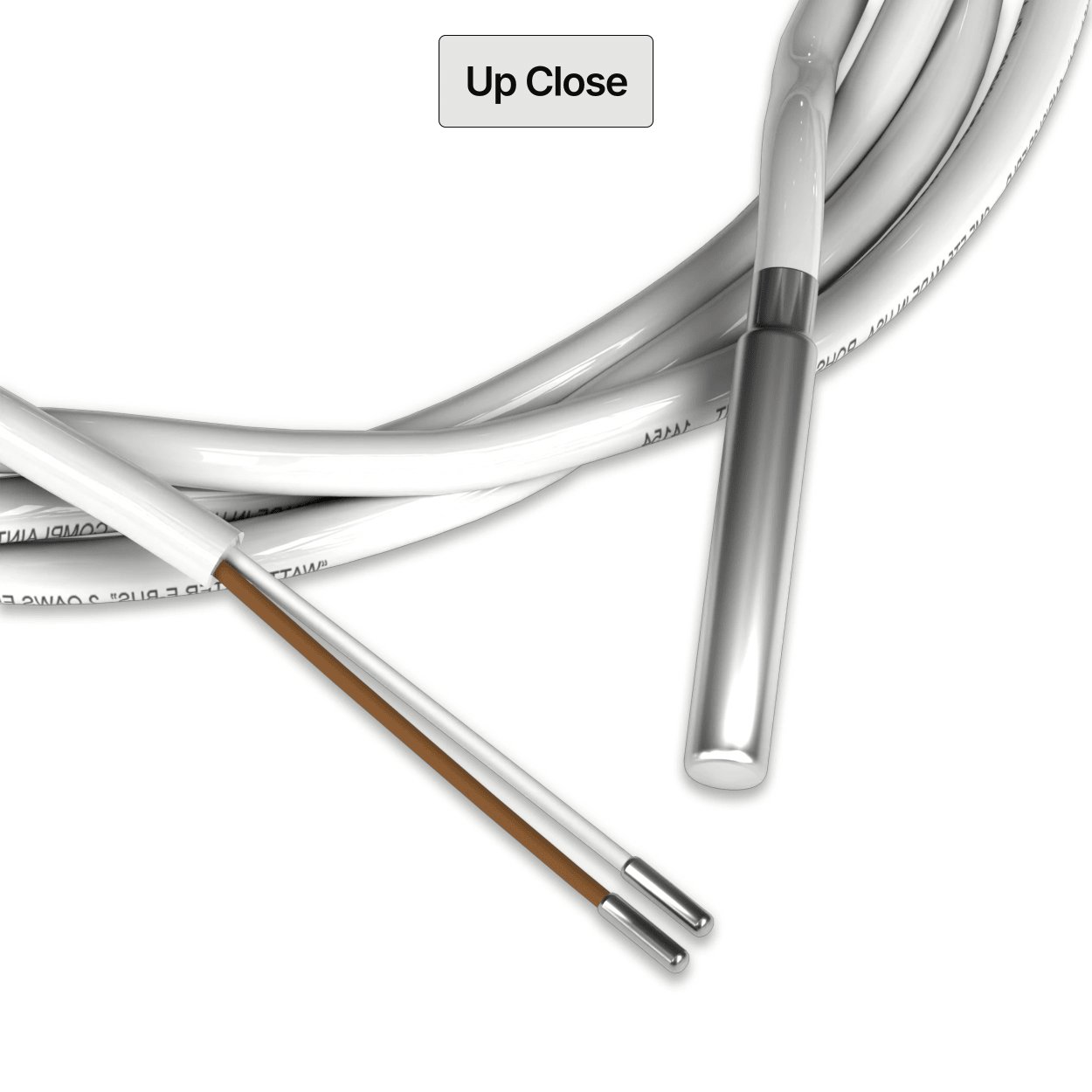

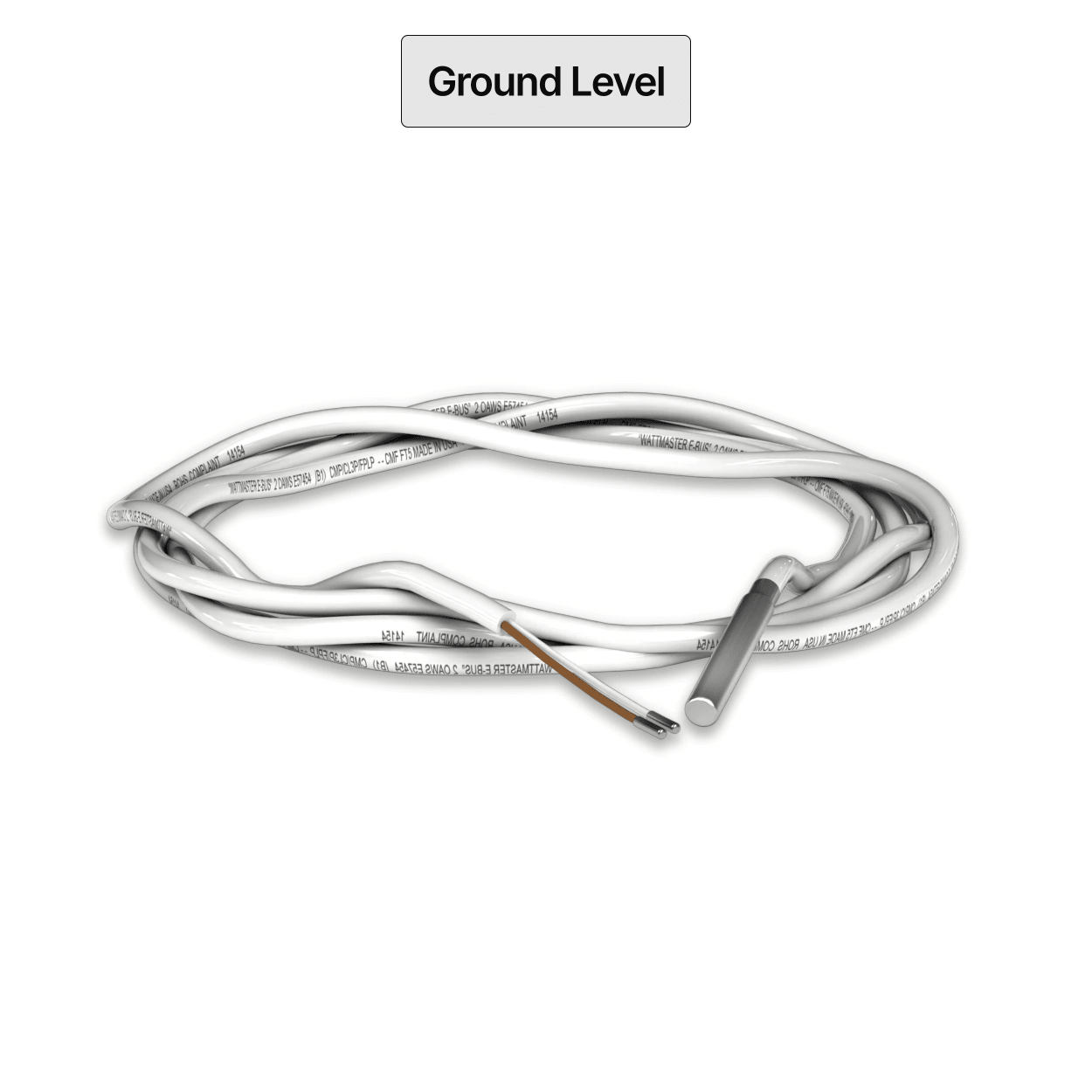

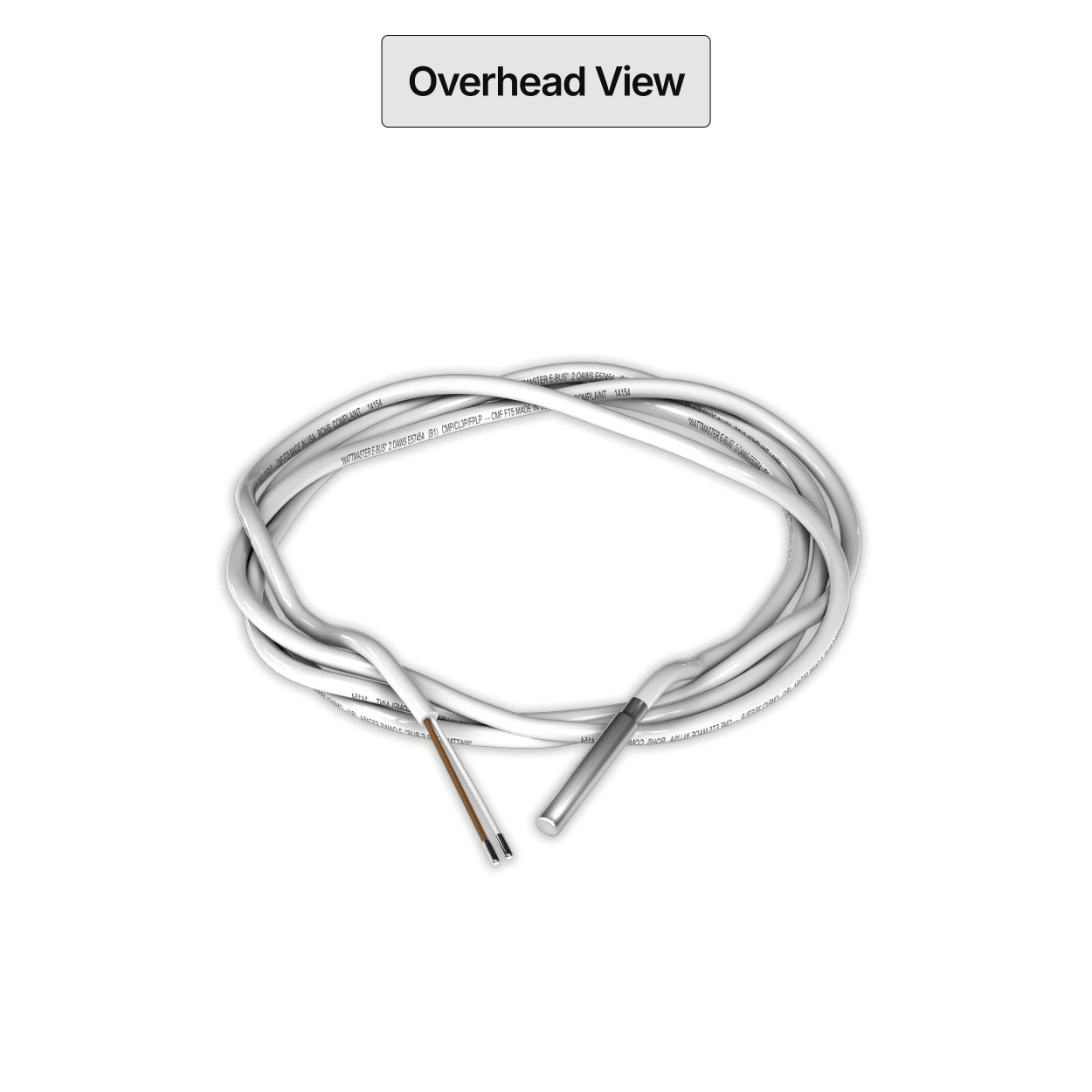

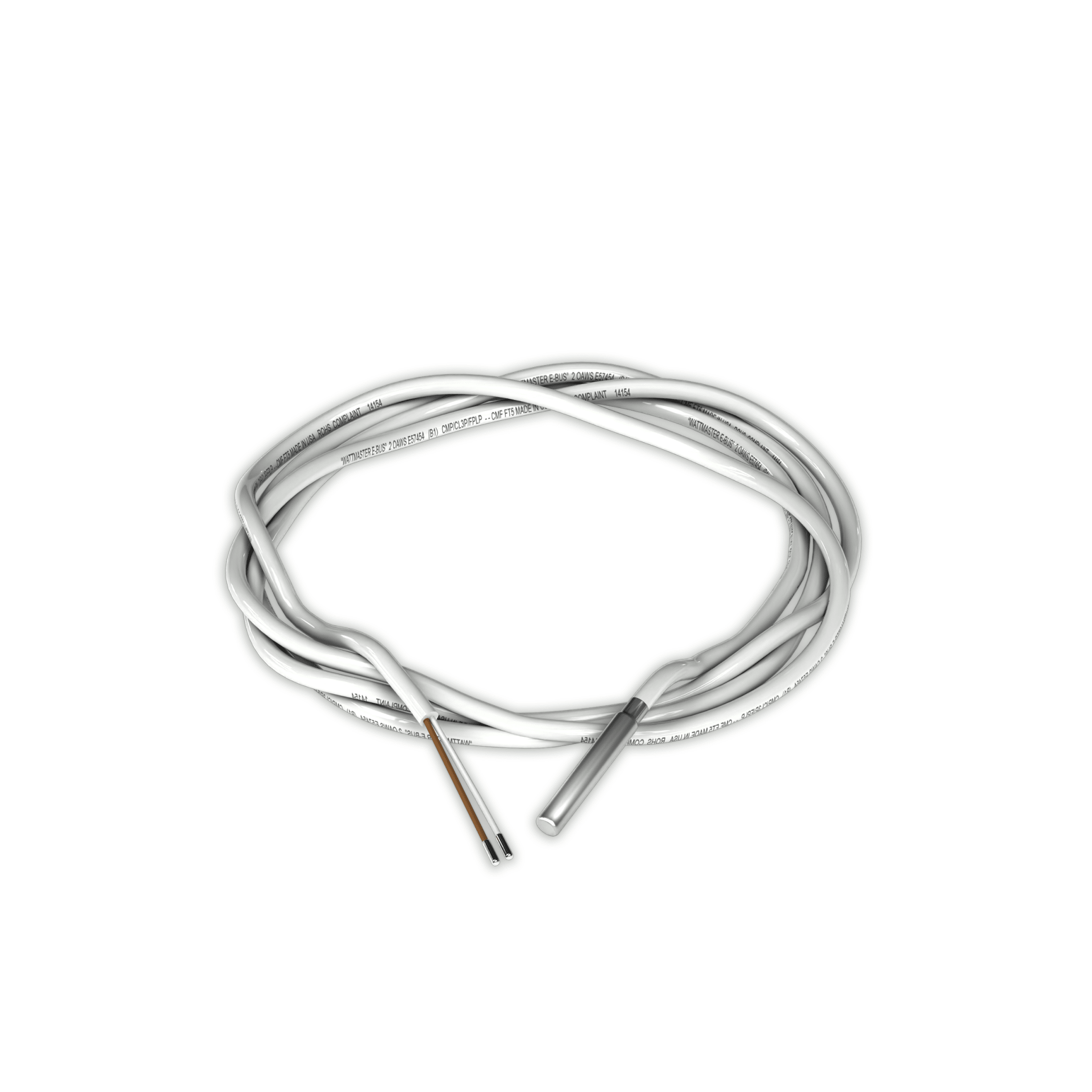

Tasseron Cable/Bullet Temperature Sensor Aftermarket part for 0843P-0838

Cable/Bullet Type Temperature Sensors

FEATURES

• PVC HT or High Temperature Silicone Cable
• Available in 5’ or 10’ standard lengths
• IP 66 Star-Crimp for watertight applications
• AISI 304 tube
• NTC thermistors and RTD elements available
• Compatible with most major control systems
• CE & RoHS compliant
• Made in the USA

SPECIFICATIONS

Length:

  5’ or 10’ standard lengths

Probe:

IP 66 Star-Crimp enclosure

6mm x 45mm AISI 304 stainless steel Filled with waterproof compound

Sensor Element:

Interchangeable NTC thermistor, 2-wire RTD Pt100, Pt1000, 2-wire

RTD Ni1000-891, Ni1000-TC5, 2 wire

Sensor Value:

NTC 10K Ohm type 2 @ 25°C / 77°F

NTC 10K Ohm type 3 @ 25°C / 77°F NTC 20K Ohm @ 25°C / 77°F

NTC 3K Ohm @ 25°C / 77°F NTC 12K Ohm @ 25°C / 77°F

RTD Pt1000 1000 Ohm @ 0°C / 32°F RTD Pt100 100 Ohm @ 0°C / 32°F

RTD Ni1000-891 891 Ohm @ 0°C / 32°F RTD Ni1000-TC5 1000 Ohm @ 0°C / 32°F

Accuracy:

NTC thermistor 0...70°C ± 0.2°C / 32...158°F ± 0.36°F

Pt100 / Pt1000 Class B IEC751, ± 0.3°C / ± 0.5°F @ 0°C / 32°F Ni1000 DIN 43760, ± 0.5°C / ± 0.9°F @ 0°C / 32°F
